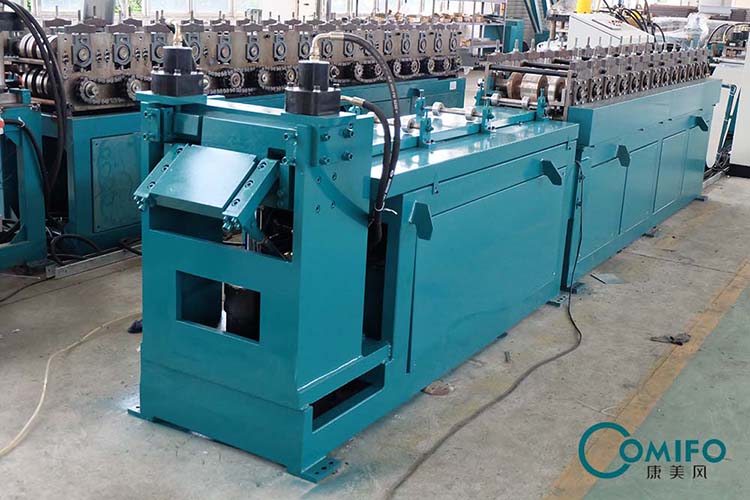

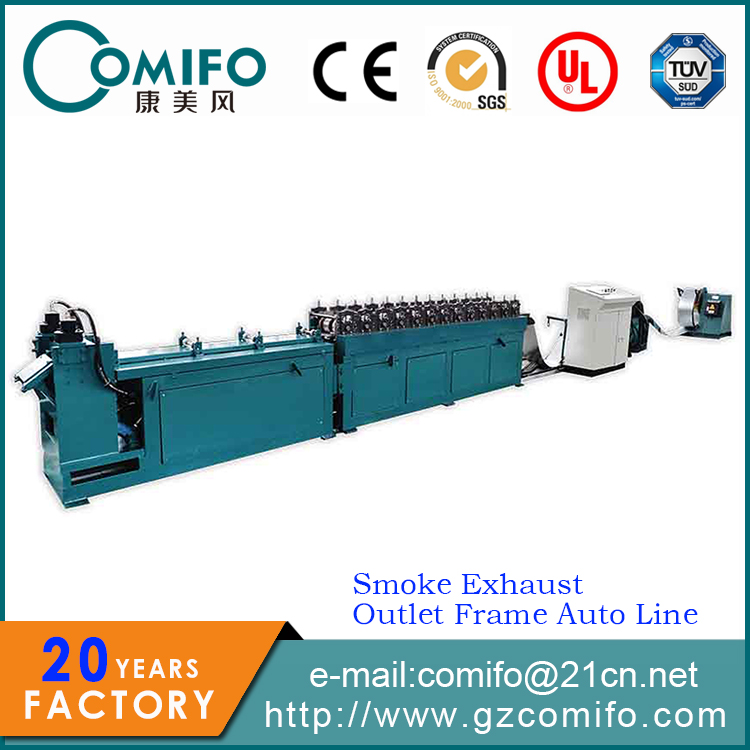

Smoke Exhaust Outlet Frame Auto Line
Products Information：

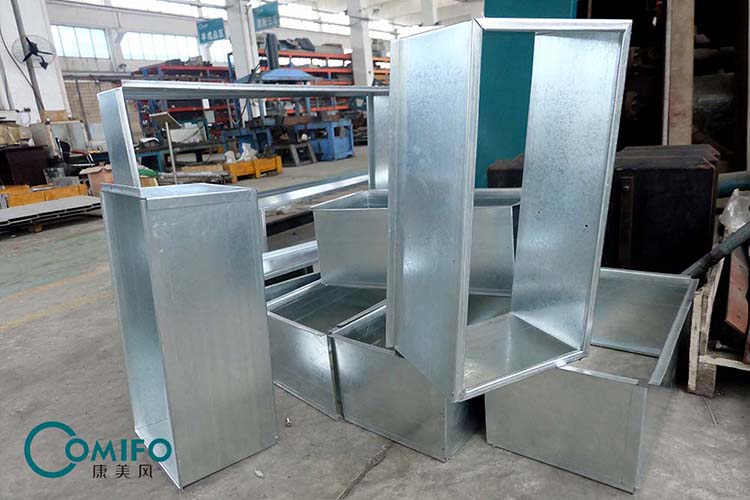

Smoke exhaust outlet also called positive pressure air supply outlet . The frame auto line consists with decoiler, straightening , punching , roll forming and folding . Patented design which Comifo has its copyright.
Basic Configuration:

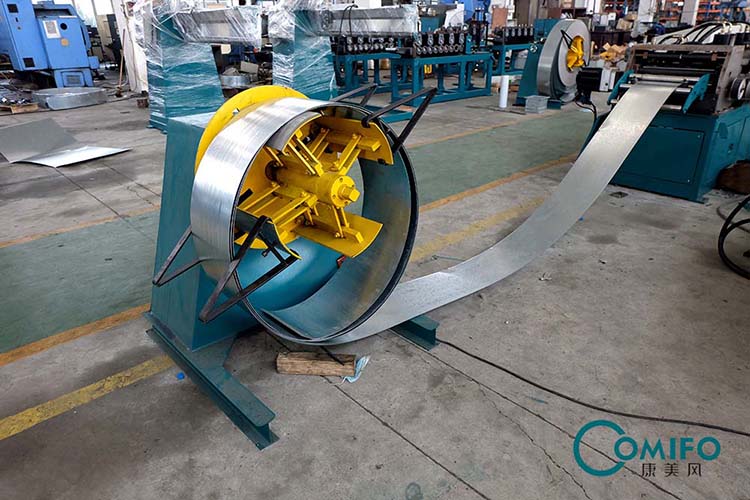

1. A decoiler

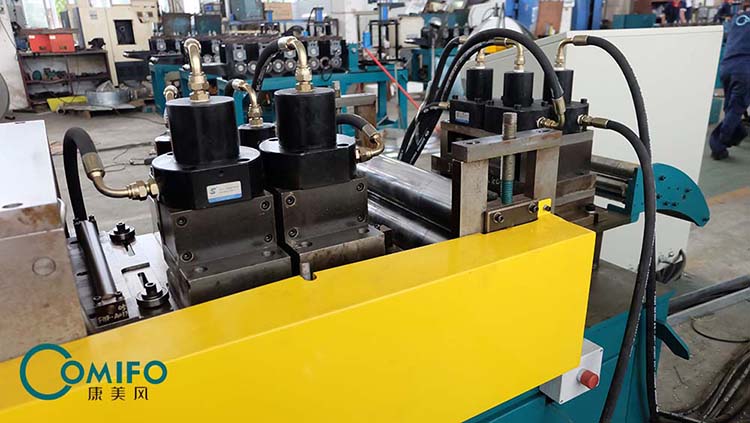

2. A straightening , punching , cutting machine

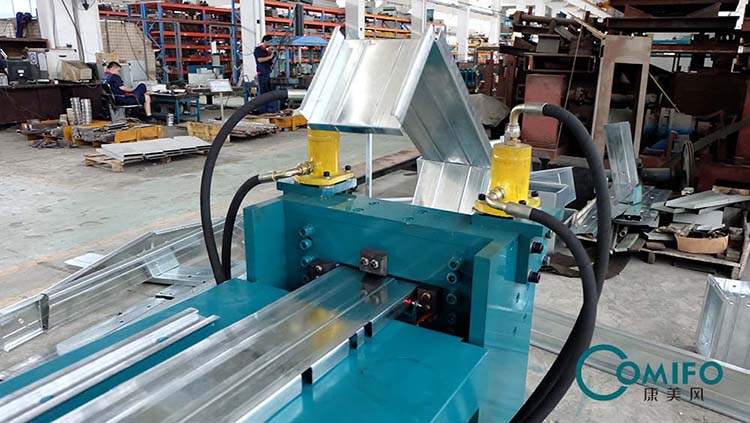

3. A roll forming machine
4. A punching cutting mould
5. A working table

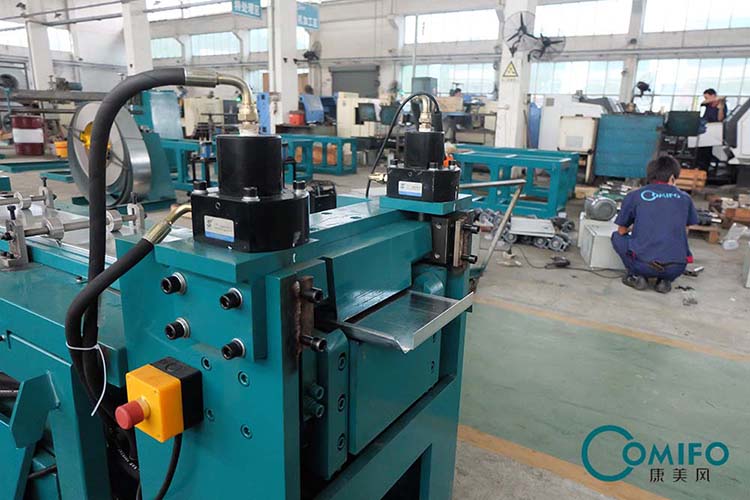

6. A folding cutting machine

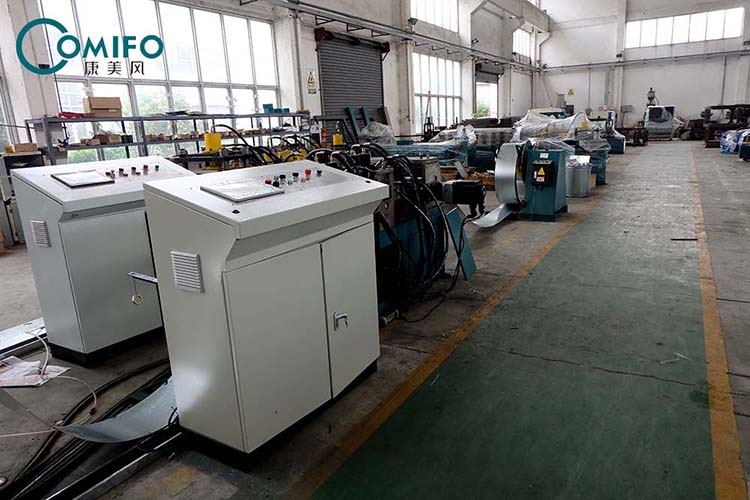

7. A control system
| Model No. | Thickness Range | Coil Width | Damper Body Width | Speed | Min. Fabricate Size | Decoiler Capacity | Dimension | Weight |
| SEOF-2.0 | 1.5-2.0mm | 276mm | 238mm | 12m/min | 300*200mm | 1.5ton | 15000*1200*1300mm | 12000kg |
